TYPE OF PROFILES
Profiles in bright silver polished aluminium.
ADJUSTMENT PROFILES
The Bypass model is available in stock in established standard sizes and with ranges that allow us to adapt to the opening (see Bypass model tables in the catalogue). These ranges are achieved by adapting the upper guide to the required size and with a greater or lesser overlap of the door over the fixed panel (3-13 cm). Therefore, during installation it will be necessary to cut the upper guide to adapt it to our opening, for which a steel cutting saw will suffice.
GLASS AND DECORATIONS
GME only works with tempered glass partitions. Tempered glass is a type of safety glass, it is processed with thermal or chemical treatments, to increase its resistance compared to normal glass. Tempered glass, when broken, splits into a multitude of small pieces instead of splintering into large jagged shards. These tiny pieces are less likely to cause injury.
This shower enclosure has 6mm thick tempered safety glass.
The shower enclosure is available with clear glass.
Another decoration option is our adhesive vinyls (delivery time 7 days).
OPENING
The opening system is by means of 2 sliding leaves, which are fitted with bearings that slide along the upper guide.
CLOSING SYSTEM
The closing system of the Bypass front with 2 sliding panels is by means of a rubber bubble, which is inserted into the sliding panel and closes by inserting itself into the vertical profile.
WATERTIGHTNESS
The shower enclosure is fitted with vertical gutter rubbers to guarantee watertightness in the gap between the sliding panels.
The shower enclosure lacks a guide in the lower part of the enclosure, so to provide a good seal, we must install a rubber gutter at the bottom of the sliding panels and a metal gutter on the shower tray (1.6 cm high and 1.1 cm wide).
YOU CHOOSE THE ACCESS

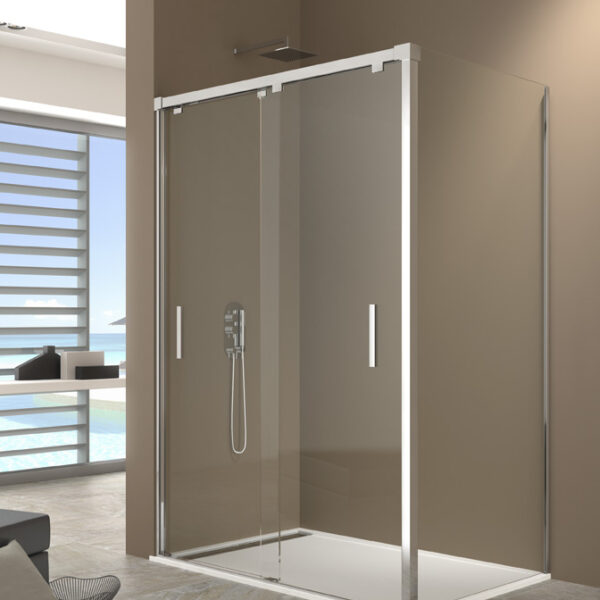

By pass series shower enclosures with 2 sliding doors of 6mm. Bypass is available in front format from 108 to 158 cm and in combinations with fixed side panels. The Bypass model is characterised by its two sliding doors which allow access from both sides. Bypass has been created with an innovative guiding system without lower profiles, which places it at the forefront of this type of shower solution.
If you wish to purchase this product please let us know and if you wish to become a distributor please contact us.
ANTI-LIMESCALE TREATMENT:
EnduroShield is a new permanent protective coating for glass, invisible and non adherent. ALL our screens have this treatment as standard.
QUALITY CERTIFICATES:
Concerned about the quality we offer our customers, GME DIVISION BATHROOMS SL has certificates that guarantee the quality of all its products, which comply with all European regulations.
At the same time, GME DIVISION BAÑOS SL is associated with AIDIMA (Technological Institute), in which inspections and laboratory tests are carried out to guarantee the quality and proper functioning of the products we offer.
EXCHANGES AND RETURNS
To request an exchange or return, please send us the following information by fax or e-mail: model, reference and reason for the request for exchange or return. Once the return has been accepted, the invoiced material will be sent for exchange and the invoice will be paid once the material has been returned to us.
Returns that have not been analysed and authorised by GME will not be accepted.
In the event that the collection is due to an error beyond GME’s control, it will be accepted, as long as the box is intact, and an amount of 40 euros will be invoiced for the collection procedures.
