TYPE OF PROFILES
Stainless steel profiles treated with a process known as mirror polishing (brightness comparable to chrome plating) which makes them easier to clean.
ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower enclosure allow the adjustment of the shower enclosure and make it possible to adapt it correctly to the conditions of the work, saving the possible unevenness that may exist in the walls and adjusting to the necessary light gap.
Specifically the width of the profiles of the Rotary model is 2.3 cm which will allow us to save the gaps that may exist in the walls of our shower tray or bathtub. The Rotary model is in stock in standard sizes already established and with ranges that allow us to adapt to the gap (see tables Rotary model in catalog).
These ranges are achieved by adapting the upper guide to the required size and with a greater or lesser overlap of the door on the fixed (1-6 cm). Therefore during the installation it will be necessary to cut the upper guide to adapt it to our opening, for it will be enough with a cutting saw for steel.
GLASS AND DECORATIONS
GME only works with tempered glass partitions. Tempered glass is a type of safety glass, it is processed with thermal or chemical treatments, to increase its resistance compared to normal glass. Tempered glass, when broken, splits into a multitude of small pieces instead of splintering into large jagged shards. These tiny pieces are less likely to cause injury.
This shower enclosure has 6mm thick tempered safety glass.
The screen is available in immediate delivery with transparent or frost plus screen-printed glass and with traces screen-printing in 15 days. Other decoration options are our adhesive vinyls (delivery time 7 days) or the possibility of digital printing (delivery time 20 days).
The Rotary screen can be completely customized, modifying the width, height or making a cut in any of its crystals. The delivery time is 15 days.
ANTI-SCALE TREATMENT
This screen includes the anti-scale treatment as standard, which covers the micropore of the glass preventing the accumulation of lime and facilitating the cleaning of the crystals.
OPENING
The opening system is by means of sliding leaves, which are provided with bearings that slide along the upper guide.
SLIDING DOOR RELEASE
This shower enclosure is provided with a leaf release system, integrated in the lower guide, by means of which the doors can be left free of the lower fastening, thus facilitating cleaning.
LOCKING SYSTEM
The locking system varies from the fixed and sliding front model to the corner opening and corner with fixed side.
The closing system of the fixed and sliding front is by means of bubble rubber, which is inserted into the sliding leaf and closes by inserting itself into a vertical U-shaped stainless steel profile.
The closing system of the angular formats is by means of magnetic closure.
WATERTIGHTNESS
The shower enclosure is equipped with vertical gutter rubbers to guarantee watertightness in the gap between the sliding panel and the fixed glass.
The screen lacks a guide in the lower part of the screen, so, to provide a good watertightness, we must install a rubber gutter in the lower part of the sliding panel and a metal gutter on the shower tray (1 cm high and 0.6 cm wide).
ELEGANT COMBINATION OF LINES

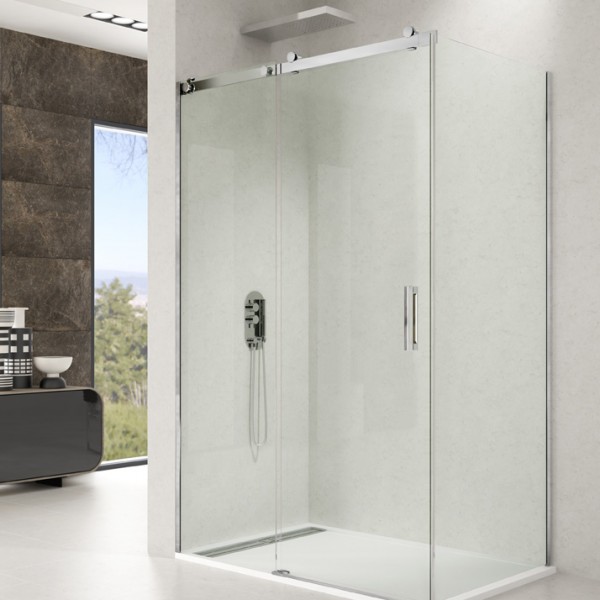

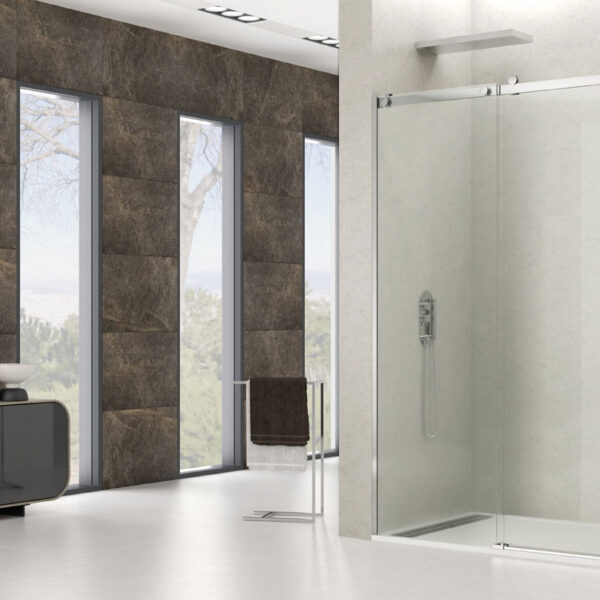

Rotary series shower enclosures in steel with 6mm glass.

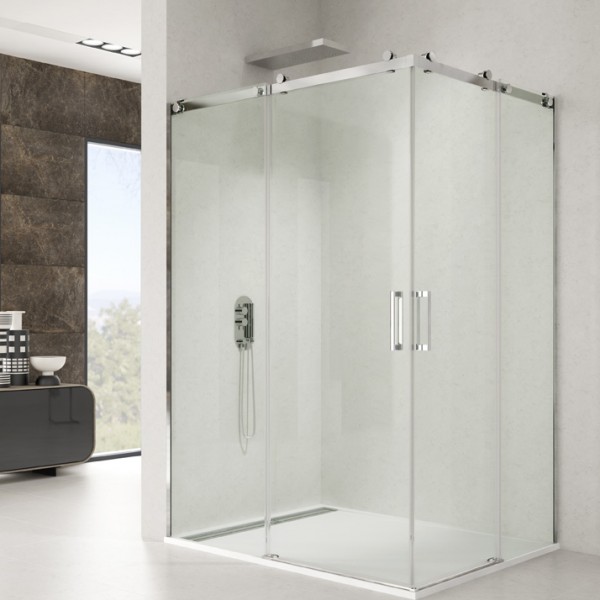

The Rotary model is available in all sizes in front, corner to the vertex and corner with fixed side of 8mm.
It stands out for its elegant combination of straight and circular lines. As well as, its innovative blade release button on the guide for easy cleaning.
If you wish to purchase this product, please let us know and if you wish to become a distributor, please contact us.
Anti-limescale treatment
EnduroShield is a new permanent protective coating for glass, invisible and non-adherent. With a single application it makes dirt, limescale and soap scum up to 90% easier to clean. All our shower enclosures have this treatment as standard and those that are custom-made will be supplied in a separate bottle. The shower enclosures of the Rotary series, have it applied as standard in their models. See video of how to apply it.
QUALITY CERTIFICATES
Concerned about the quality we offer to our customers, GME DIVISION BATHROOMS SL has certificates that guarantee the quality of all its products, which comply with all European standards.
At the same time GME DIVISION BAÑOS SL is associated to AIDIMA (Technological Institute), in which inspections and laboratory tests are carried out to guarantee the quality and good performance of the products we offer.
Glass measures: consult excel.
To request an exchange or return, please send us by fax or e-mail the following information: model, reference and reason for the request for exchange or return. Once the return is accepted, we will proceed to send the invoiced material for exchange. The invoice will be credited once the material has been returned to us.
Returns that have not been analyzed and authorized by GME will not be accepted.
In the event that the collection is due to an error beyond GME’s control, it will be accepted, provided that the box is intact, and an amount of 40 euros will be invoiced for the collection procedures.
